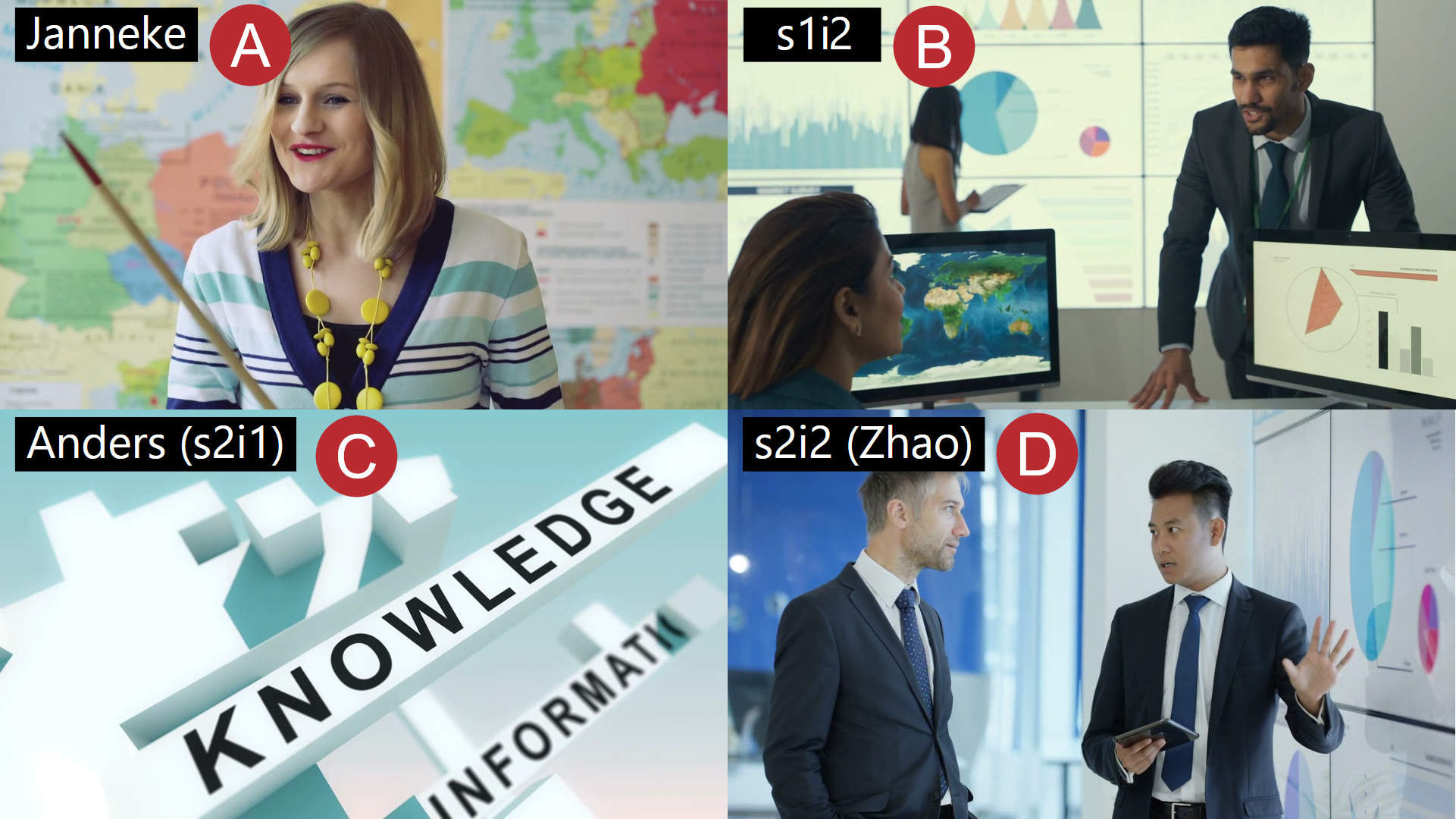

Viewing and customizing window labels

• To toggle between viewing customized window labels and viewing sources assigned to windows, press on the front panel.
• You can show labels on specific windows in CORIOgrapher.

To show customized labels on specific windows

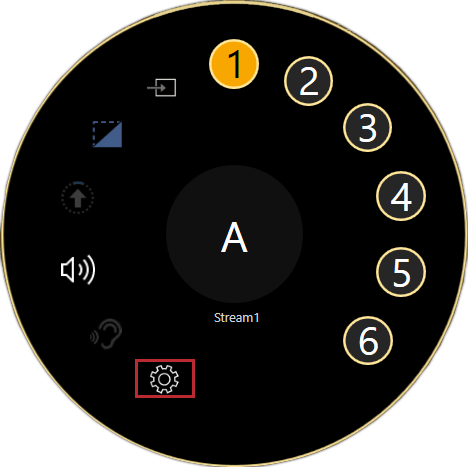

1. From Dashboard, select the bubble of the window you want to show a label.



2. Select .

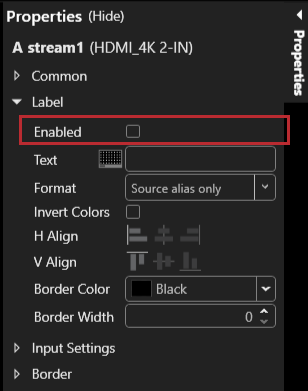

3. From Properties, select Label > Enabled.



To customize labels

1. From Dashboard, select the bubble of the window you want to show a label.



2. Select .



3. From Properties, customize your label.

4. OPTIONAL: Add custom text.

   1. Select an option that includes label text from Format.



   2. Enter your text. To see allowed characters, open the keyboard.



5. OPTIONAL: If your label is hard to see against your background, select Invert Colors.

6. OPTIONAL: Change the location of the label on the window.

   Choose a position using the alignment buttons in H Align and V Align.

7. OPTIONAL: Add a border around the label.

   Select an option from Border Color, and enter the width in pixels.
