About your Encoder‑100
The Encoder‑100 streaming media encoder allows you to stream high quality video and audio from a range of sources to the Streaming media and 4K playback input module of your
Features
- Convert video and audio to high quality digital stream.
- High quality, low bandwidth encoding with H.264 compression.
- Full 1080p HD support at up to 60 frames per second.
- Single channel encoder.
- Supports streams with low latency.
- Supports unicast and multicast streaming.
- HDMI video and audio input and output.
- Analog audio input and output.
- Preview your video signal and stream separately.
Recommendations
- For best results, use Gb Ethernet cables and equipment.
-
In industrial environments, use shielded Ethernet cables.
Shielded Ethernet cables are often marked F/UTP or FTP.

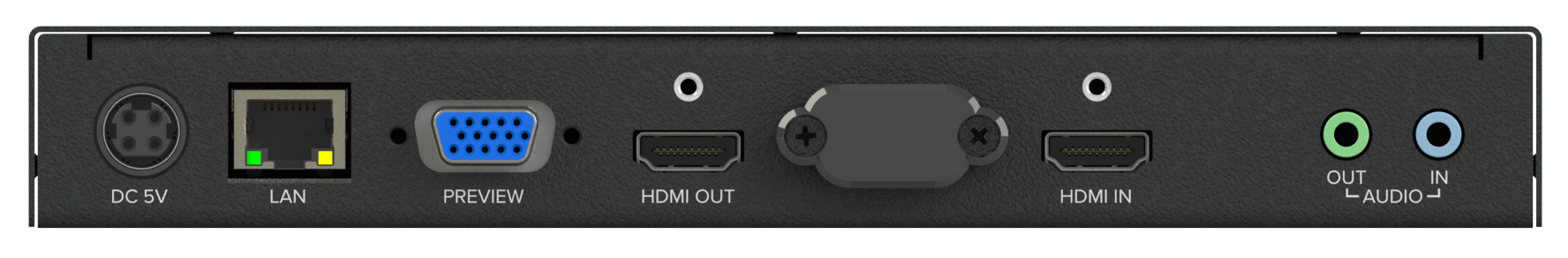

Encoder‑100 rear panel
|
DC 5V |
Connect to an electrical outlet |
|
LAN |
Sends encoded signal to your network Connect to your network with Ethernet |
|
PREVIEW |
Allows you to preview your encoded signal Connect to a display with a VGA cable |
|
HDMI OUT |
Allows you to preview your encoded signal Connect to a display with an HDMI cable |
|
HDMI IN |
Receives video and digital audio signal from a source Connect to a source with an HDMI cable |
|
AUDIO OUT |
Allows you to preview your audio signal Connect a speaker with a 3.5 mm jack audio cable |
|
AUDIO IN |
Receives analog audio from a source Connect a 3.5 mm jack audio cable |
